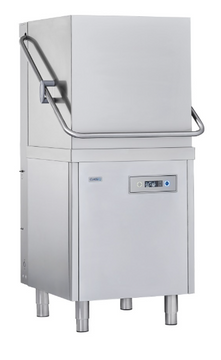

Winterhalter PT-M Energy - Pass Through Dishwasher

Winterhalter PT-M Energy - Pass Through Dishwasher

Features:

• Smart touch display: simple single button operation

• Top & bottom S shaped wash fields

• Variopower washing pressure adjustment

• Chemical pumps

• Rinse booster pump

• Drain pump

• Active energy management

• Energy Light: waste water heat recovery system

• Quadruple filtration

• Clouding sensor

• Connected wash

• Timer for automatic start up and close down

• Hood start: washing program starts by closing the hood

• Exhaust air heat recovery: reduces steam and energy costs

Technical Information:

Dimensions: 635mm W x 750 D x 2225 H

Rack Dimensions: 500 x 500

Clear Entry Height: 440

Rinse Water Consumption: 2.2L Per Cycle

Water Connections:

Connection Point: 3/4 inch (19mm)

Inlet Temperature: 20c Max

Flow Rate: 4 L/Min

Flow Pressure: 1.5 bar/Min

Wastewater Connection: 23.6mm

Electrical:

3 Phase (Standard): 415v 3P 50Hz - 20 amp (TCL 9.7 Kw)

General Data:

Weight (Net/Gross): 156/175Kg

Tank Capacity: 35L

Noise Emission: 62dB(A)

Cycle Times: 80/110/140 Seconds (Adjustable)

Standard Inclusions:

1 x 3 phase lead

1 x 1m Flexible Water Connection Hose

1 x 1m Flexible Waste Hose

2 x 500x500 Racks (1x Flat, 1x Plate)

Certificates:

WRAS

Watermark Approval

Hygiene Certificate according to DIN 10534

Vent-less canopy certification

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
