LUUS WV-1A2P1A Fo San Wok - 2 Air-Blast Burners & 2 Centre Pots

WV-1A2P1A 2200mm W Fo San Wok 2 Air Burners with 2 Centre Pots LUUS

Inspired by the fast-paced kitchens of Hong Kong, ‘Fo San’ is Cantonese for volcano, representing the raw heat and power generated by the unique burner set-up.

Double hole wok with two fan forced stainless steel 145mj Air Blast Burners and two centre pots. Front gutter design, fire-brick lined combustion chamber, rear flue system, cast-iron ring, internal front heat shield panel and quarter turn tap.

Features:

• Refined 11th generation Luus superwok design

• Fan-forced burner generates greater output compared to some standard wok burners on the market

• Intense heat and focused flame targets the wok centre and provides unmatched stir frying speeds

• Luus’ unique burner & pilot set up is the most effective design on the market at preventing grease/water blockages

• Compact 900mm space saving overall unit depth

• Natural cooling via insulation and rear flue design

• Entirely redesigned electrical system with faster ignition, auto re-ignition and greater reliability.

• 24 month ‘Platinum Warranty’

Fo San Wok:

• 2 x 145 mj Air-Blast Burner with 3 mj pilot & FFD standard

• Electronic auto-ignition switch and burner reset function

• Fan-forced stainless steel burner easy-to-clean design

• External pilot position most effective at avoiding blockages

• Fire-brick lined combustion chamber and ceramic base

• Rear flue system provides effective & efficient combustion

• Quarter turn water control lever

• Folding rear laundry arm with front panel controls

• Front gutter design for easier cleaning

• Internal front heat shield panel

• Supplied with waste strainer

• Zinc-aluminium Alloy burner handles

• Ergonomically designed burner handle can be repositioned at 45˚ orientations to match personal preference

Overall Construction:

• Heavy duty construction

• Robust, full skirt, 355mm cast-iron ring

• 1.5mm 304 stainless steel top deck

• Splashback 1.2 mm 304 stainless steel

• Front cover and hob 1.2mm 304 stainless steel

• Side panels 0.9mm 304 stainless steel

• Stainless steel removable legs

• 55mm height adjustment range

• 1.5mm 304 stainless steel base panel

• One-piece hob and deck

Dimensions:

• 2200mm W x 900mm D x 1300mm H

• Working height 800mm

• Weight 375kg

• Packed dimensions 2250mm x 950mm x 1470mm H

• Packed weight 420kg

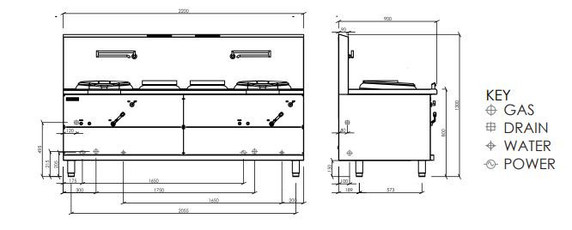

Connections:

• 3/4" BSP Male

• Gas#1 300mm from left,100mm from rear, 215mm to floor

• Gas#2 1750mm from left, 100mm from rear, 215mm to floor

• Gas regulator built-in to gas train

• Water inlet 1/2” tube with check valve

• Water #1 200mm from right 60mm to rear, 205mm to floor

• Water #2 1650mm from right 60mm to rear, 205mm to floor

• Drain 2” pipe

• Drain 120mm from left 80mm from rear, 495mm to floor

• Electrical input rated at 220-240V, 10A, 50Hz & 150W

• Electrical input #1 175mm from left, 205mm from floor

• Electrical input #2 1650mm from left, 205mm from floor

• Length of cable from rear is 600mm

Cleaning & Servicing:

• Front gutter design and waste strainer for easier cleaning

• Top surface and skirting is easy to clean from above

• Burner removable and accessible from above

• Burner injector, electrode and flame probe accessible

• Control box accessible via lower front cover

• Drain and tap accessible by removing upper front cover

• Gas train, air-line, fan and burner accessible by removing front covers

Nat Gas: 290 mj

LP Gas: 290 mj

**Please advise your preferred gas type when ordering.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
