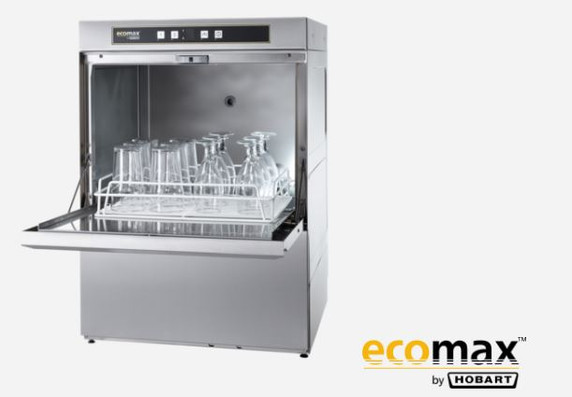

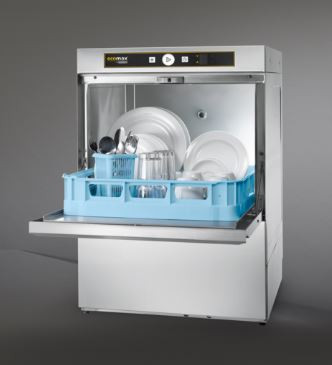

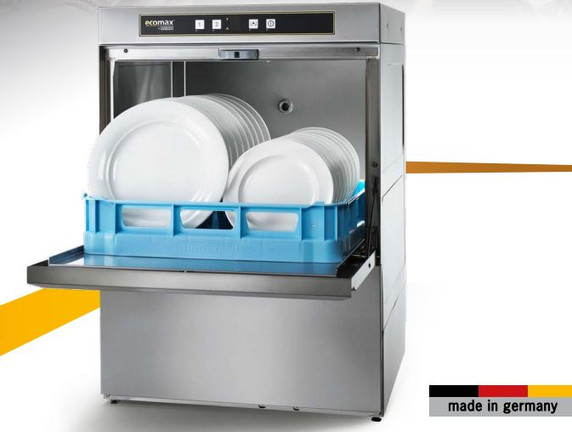

With a high capacity of up to 60 racks per hour, this dishwasher is a reliable partner for clubs, bistros, taverns and fast-food restaurants. The practical floor unit fits under every work counter.
Features:
- Single-button control with digital temperature indication
- Flat surface of control panel
- 3 selectable wash cycles
- Special hygiene programme for hygienic cleanliness

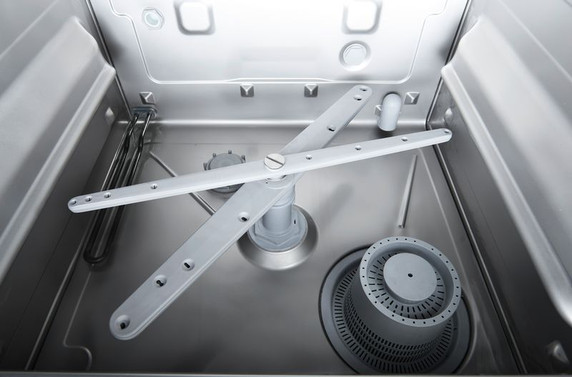

- Rotating top and bottom wash system to distribute the wash water evenly over the dishes
- Indented nozzles prevent blocking
- Thermostop-function for guaranteed rinse temperatures
- Removal of rinse arms without any tools
- Easy access to all parts
- Deep drawn rack track
- Double-walled housing and front door
- Tank strainer reduces soiling of the tank water
- Integrated cycle counting, e.g. for control of water treatment system
- USB connect for easier service access
- Refill signal monitors fill level of external chemical containers with optional suction lances
Standard Equipment:
- Plate rack P-18-12
- Cutlery basket CB1
- Rinse aid dispenser
- Rinse pressure pump for optimum flow pressure
- Heater with thermostat control
- Electric cable, flexible water supply hose and drain hose
- Rear panelling
The installation of machines with integrated water softener requires a back flow safety device (at site) according to DVGW-DIN 1988.
Line pressure required: 0.8 to 6 bar
Technical Data:
Cycle Times*: 60/120/ 180 seconds
Rack capacity: up to 60 racks/h
Tank capacity: 25 L
Water consumption: 2.0 L/rack
Wash pump: 0.34 kW
Tank heating: 1.8 kW
Total Loading: 2.2 kW
Total connected load - standard: 5.9 kW (400 V)
Rated voltage: 240V/ 50Hz/1-15 amp
External dimensions: 576mm W x 604 D x 820 H
Loading height: 360 mm
Rack Size: 500 x 500mm
* hot water connection**with 240V/50Hz/1
Warranty: 12 Months Warranty
Please note: For machine protection the water hardness should not exceed 3°dH, if higher we recommend using a HOBART HYDROLINE water softener / treatment system.
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
