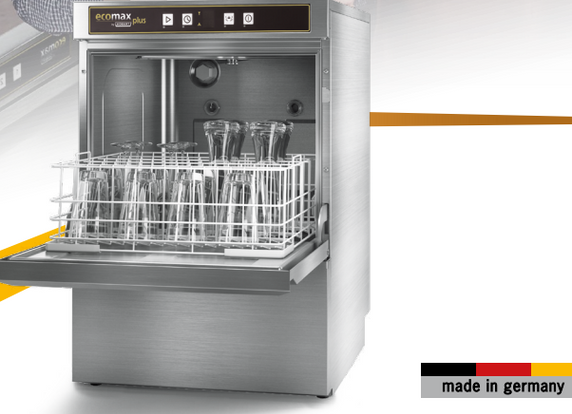

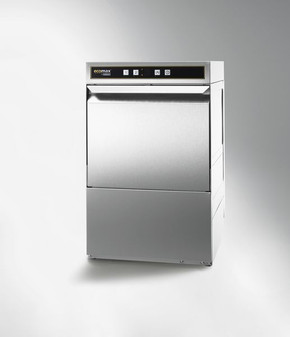

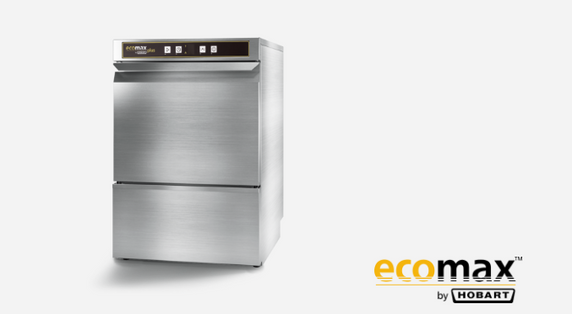

Hobart Ecomax Plus G415-D Compact Glasswasher

An ideal compact front door glasswasher for hotels, bars and restaurant that are washing more than 100 glasses per day.

Features:

• Single-button control with digital temperature indication
• Flat surface of control panel
• 3 selectable wash cycles and special cutlery cycle
• Special hygiene programme for hygienic cleanliness
• Rotating top and bottom wash system to distribute the wash water evenly over the dishes
• Indented nozzles prevent blocking
• Thermostop-function for guaranteed rinse temperatures
• Removal of rinse arms without any tools
• Easy access to all parts
• Refill signal monitors fill level of external chemical containers with optional suction lances

Plus - Features:

• Deep-drawn wash tank
• Double-walled housing and heat insulated front door
• Tank strainer, coarse filter and pump suction casing
• Door damping control
• Loading height above average: 315 mm, for easy loading of extra high glasses
• Fully equipped with detergent and rinse aid dispenser, rinse pressure pump and drain pump

Standard Equipment:

• Glass rack with 4 sloped rows 00-371450-084
• Heater with thermostat control
• Electric cable, flexible water supply hose and drain hose
• Rear panelling

Line pressure required: 0.5 (0.8 with integrated softener) to 10 bar

Technical Data:

Cycle Times*: 60/ 120/ 180 seconds

Rack capacity: up to 60 racks/h

Tank Capacity: 8 Litres

Water consumption: 1.8 l/rack

Wash pump: 0.4 kW

Tank heating: 0.8 kW

Booster loading - standard: 2.8 kW (230 V)

Total connected load - standard: 3.2 kW (230 V)

Rated voltage: 230/ 50/ 1 (400/ 50/ 30N)

External dimensions: 460mm W x 590 D x 705  H

Loading height: 315 mm

Rack Size: 400 x 400 mm

* The machine is equipped with an automatic cycle-time control which ensures hygienic rinse temperatures even on a cold-water supply or with reduced heating performance.

Warranty: 12 Months

Please note: For machine protection the water hardness should not exceed 3°dH, if higher we recommend using a HOBART HYDROLINE water softener / treatment system.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
