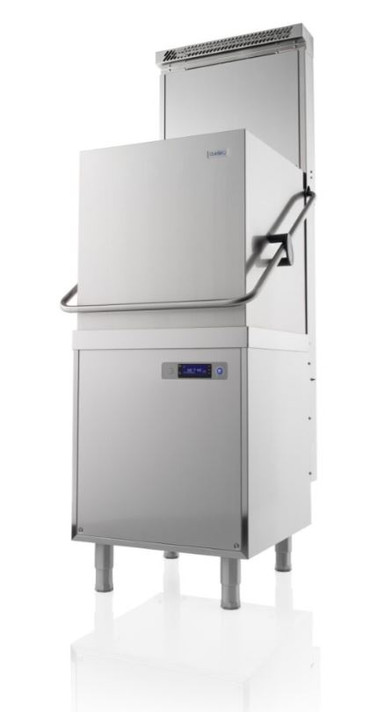

Classeq CP500SR - Pass Through Dishwasher

Simple to use, clean and maintain, robust enough to keep service flowing day after day.

The CP500 SR comes with the new Steam Recovery Unit. This minimises the steam released into the kitchen, eliminating the need for extraction and creating a more pleasant work environment. The captured heat is reused to preheat the incoming water, improving efficiency with every cycle.

Easily configured for straight or corner locations, the CP500 SR can be commissioned as a dishwasher or glasswasher on site.

As a dishwasher the CP500 can wash up to 720 plates per hour, and up to 1000 glasses per hour as a glasswasher.

As a dishwasher there are four wash programmes, 1.5, 3, 5 and 7 minute wash cycles to choose from, including a new utensil wash programme. As a glasswasher there are two wash programmes, 1.5 and 2 minute wash cycles.

Every CP500 model comes complete with a drain pump, rinse booster pump and detergent and rinse aid pumps as standard.

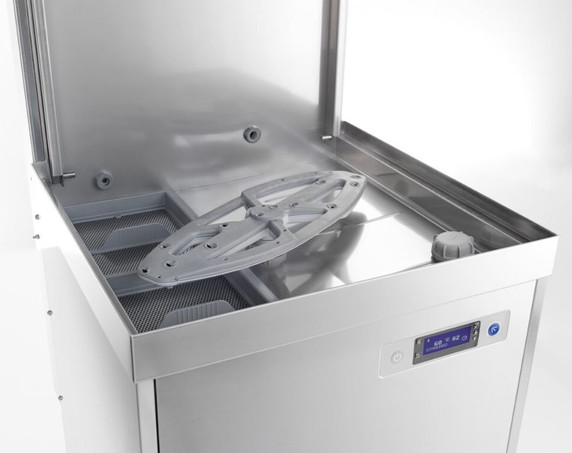

Inside, the new CP500 has click-in and click-out wash arms and a double filtration system, plus deep clean and refresh cycles. All enhancing wash results and making the machine simple to clean.

All CP500 models are supported by the Classeq Bluetooth App. Allowing operators and technicians instant access to user guides, machine settings, performance data and service information.

An optional integral water softener is available essential for hard water areas.

Simple:

• Easy to use, simple to clean, excellent wash results.
• Drain pump, rinse booster pump, detergent and rinse aid pumps all fitted as standard.
• Steam recovery unit minimises the steam released into the kitchen, eliminating the need for extraction and creating a more comfortable workspace.
• Updated colour coded display.
• New energy saving standby mode.
• New Bluetooth® app.
• New deep clean programme and refresh cycle.
• New utensil wash programme with optional basket for Gastronorm 1/1 trays.

Robust:

• New guided descaling programme.
• New optional audible alarm.
• Optional integral water softener with new low salt audible alarm.
• New hygiene and service reminders.

Classeq: Made in Britain

Standard Features:

• LCD control with digital temperature
• Display
• Integrated drain pump
• Integrated rinse pump
• Integrated chemical pumps
• Dual filtration
• Click In & out single piece wash fields
• Exhaust Air Heat Recovery
• Watermark approved
• Certified to be used without mechanical extraction
• Suitable for straight and corner operation

Key Features:

Dimensions: 635 mm W x 2012-2072 H x 713 D

Basket Size: 500 x 500 mm

Clear Entry Height: 440

Rinse Water Consumption: 3L Per cycle

Water Connections:

Connection Point 3/4 inch (19mm)
Inlet Temperature 35c Max
Flow Rate 4 L/Min
Drain Size 40mm

Electrical:

3 Phase (Standard)

415v 3P 50Hz - 20amp (TCL 9.5Kw) - optional

General Data:

Weight (Net/Gross) 130Kg / 178Kg
Wash Tank Capacity 30L
Noise Emission 70dB(A)
Cycle Times 1.5 / 3 / 5 /7 Minute
Theoretical Capacity 720 plates per hour

Standard Inclusions:

1x 3 Phase Lead
1x 1M Flexible Water Connection Hose
1x 1M Flexible Waste Hose
1x 500 x 500 Flat Cup Basket
1x 500 x 500 Peg Plate Basket
1x 8 Compartment Cutlery Basket

 2 Years Parts & Labour

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
