Classeq

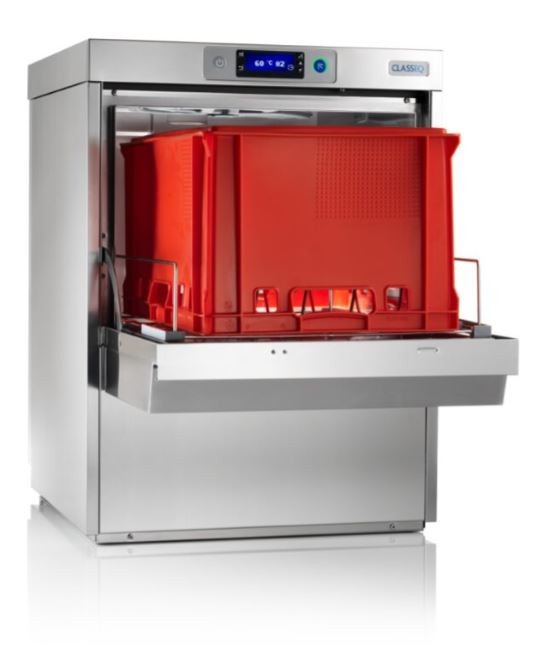

Classeq C500DD - Undercounter Glasswasher & Dishwasher
Product Code:
C500DD
Shipping:
Calculated at Checkout
$9,460.00
$6,525.20
Sale 31%
$8,600.00
$5,932.00
Sale 31%
Rent-try-buy from $11.8 per day*
pay in Installments from $35 per week*
Designed specifically for washing large wash items, the C500DD is perfect for those demanding applications in busy kitchens, providing powerful performance and versatility.
Whether you need to clean 1/1 GN containers or 400 x 600 x 300mm baking trays, the C500DD can accommodate items up to 400 x 600mm, making it ideal for larger washing tasks.
From the inside out the new Classeq Undercounter range combine maximum efficiency, pure lines and the cleaning power to shine bright in the busiest kitchens and bars.
Standard features:
• Drain pump
• Rinse booster pump
• Chemical pumps
• Bluetooth connectivity
• Energy-saving mode
• Colour-coded display
• Double-skinned door & cabinet to reduce noise and limit heat loss
• Hygiene and service reminders
• Deep clean mode and refresh cycle
Technical Data:
Basket Size: 500 x 500 mm
Standard Equipment: Drain pump, rinse booster pump, detergent and rinse aid pumps
Programmes: Glass - 1.5 & 2 minute cycles | Dish - 2, 3 & 5minute cycles
Dimensions: 600 mm x 850 mm x 671 mm
Basket / Hour: Grates 30 | Trays 150
Power: 30 amp or 15 amp single phase | 30 amp 3 phase

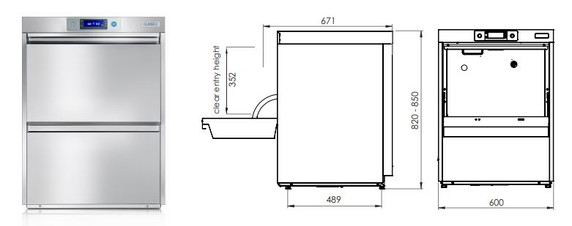

Dimensions:
Width: 600 mm
Height: 820 - 850 mm
Rack Dimensions: 500 x 500 mm
Depth: 600 mm
Entry Height: 352 mm
Drain Size: 40 mm
Basket Size: 500 mm x 500 mm
C500DD Performances:
Glasses per rack: 16
Plates per rack: 9
Wash Programmes - Glass: 1.5 & 2 min. Cycles
Wash Programmes : Dish
Theoretical max. Racks per hour - Glass: 40
Theoretical max. Racks per hour - Dish: 30
Wash Tank Capacity: 9.5 litres
Rinse Tank Capacity: 6.5 litres
Wash Temperature: 60 °C
Rinse Temperature - Glass : 6 kW
Rinse Temperature - Dish : 28 Litres
Water Consumption per Cycle: 2.75 litres
Additional Specifications:
Hydraulic specifications:
Water supply connection: G3/4” (3/4” BSP)
Required water pressure min/max: 1-10 bar
Incoming water temperature min/max: 4 °C / 55 °C
Optional integrated water softener: Yes
Water Connections:
Connection Point G3/4" (3/4"BSP)
Inlet Temperature 20 - 55ºC
Flow Rate 4 L/Min
Flow Pressure 1-10 bar
Drain Size 3 Phase (Optional) 40mm
Waste Height 600mm
Electrical Specifications:
Single Phase (Standard) 15A - 30A
3 Phase (Optional) 15A
Power Consumption 6.58Kw
15 Amp – 1 Phase
Amps Required: 15 A (1 Phase)
Standard operating voltage: 220 – 240V/ 1N ~ / 50Hz
Total connected load: 2.5 kW
30 Amp – 1 Phase
Amps Required: 30 A (1 Phase)
Standard operating voltage: 220 – 240V/ 1N ~ / 50Hz
Total connected load: 6.5 kW
15 Amp – 3 Phase
Amps Required: 15 A (3 Phase)
Standard operating voltage: 380 – 415V/ 3N ~ / 50Hz
Total connected load: 6.5 kW
General Data:
Weight (Net/Gross) 52Kg (60Kg)
Wash Tank Capacity 15 L
Rinse Tank Capacity 6.5L
Noise Emission <70 (dB)
Cycle Times 1.5 & 2 min Glass / 2 , 3 & 5 min Dish
Standard Inclusions:
1m waste hose
1m connection hose
Chemical pumps, lines with weights
Rinse booster pump
Drain pump
1 x 500x500 plate rack (30001198)
1 x tray rack (30019192)
1 x cutlery holder (30001167)
Warranty: 2 Years on Parts and Labour
N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
