Thermaster LG-540P White Upright Drink Fridge 530L | GEMS 9-Star 10A

[THERMASTER_MSG]

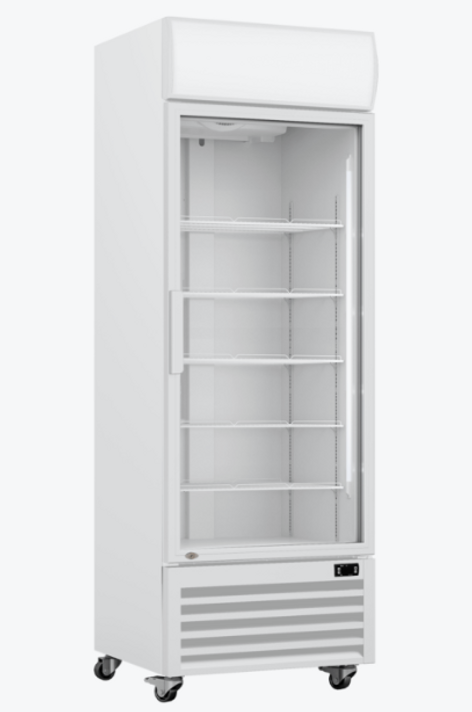

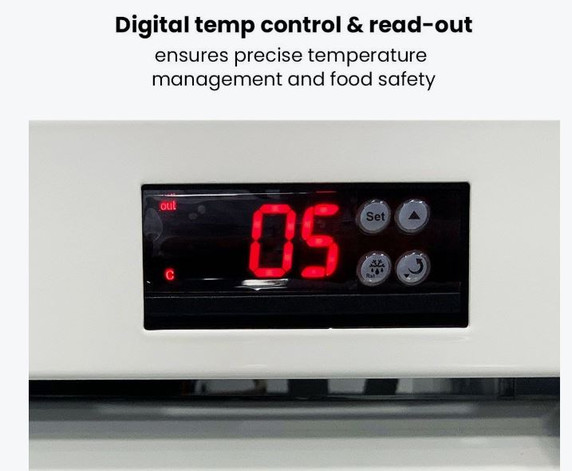

The Thermaster LG-540P Single Glass Door White Colourbond Upright Drink Fridge (530L Capacity) is a commercial beverage display merchandiser engineered specifically for Australian cafes, takeaway shops, convenience stores, bakeries, school canteens, sporting clubs, and front-of-house hospitality venues. Measuring 700 mm Wide x 690 mm Deep x 2079 mm High and weighing 83 kg, this clean white vertical showcase delivers a substantial 530-litre gross capacity (495-litre usable net volume) within a compact 700mm footprint. Driven by an eco-friendly R290 natural hydrocarbon refrigeration system, the LG-540P achieves an Australian GEMS 9-Star energy rating while consuming just 2.59 kWh/24h. Featuring a backlit top advertising lightbox, vertical interior lighting, a self-closing double-glazed lockable glass door, an easy-to-read digital controller (2°C to 8°C), and heavy-duty lockable castors, this merchandiser is rated to maintain food-safe holding temperatures in ambient room conditions up to 38°C (65% relative humidity) on a standard 10A plug-and-play electrical connection.

Why Australian commercial venues choose the Thermaster LG-540P:

• GEMS 9-Star ultra-low power consumption — consumes just 2.59 kWh per 24 hours to significantly reduce daily utility expenses while fulfilling all Australian Greenhouse and Energy Minimum Standards (GEMS) compliance requirements.

• Generous 530L display volume (495L net) — spacious interior cabinet accommodates high volumes of bottled soft drinks, juices, craft beers, dairy items, and ready-to-go meal packs to minimise replenishment cycles during trading peaks.

• Tropicalised 38°C ambient rating — heavy-duty commercial cooling package engineered to pull down and maintain dependable product temperatures between 2°C and 8°C in demanding Australian venue climates up to 38°C and 65% relative humidity.

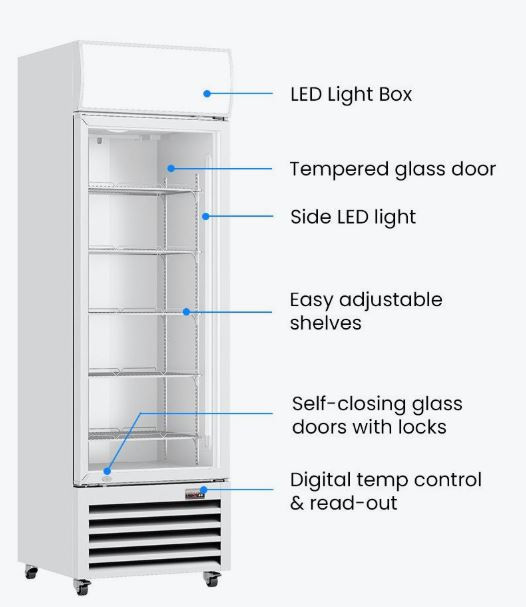

• Backlit header advertising canopy — customisable illuminated lightbox fascia features an independent on/off switch, allowing operators to promote beverage brands, daily specials, or business logos to stimulate impulse sales.

• Internal vertical product lighting — full-height vertical lighting illuminates stock evenly from the top shelf to the bottom deck, ensuring brand labels remain bright, legible, and visually engaging.

• Self-closing double-glazed lockable door — heavy-duty double glazing minimises thermal exchange, while the self-closing hinge mechanism prevents cold air loss during self-service; includes an integrated key lock for after-hours stock security.

• Eco-conscious R290 natural refrigerant — zero ozone depletion potential (ODP) and minimal global warming potential (GWP) paired with high-density CFC-free thermal insulation deliver sustainable, energy-efficient refrigeration.

• Automatic defrost with condensate evaporation — automated defrost system cycles moisture into a heated evaporation tray located near the compressor, removing water automatically without needing manual emptying or external floor plumbing.

• Heavy-duty mobility castors — fitted with four commercial-grade castor wheels (two front wheels with foot-operated brakes) for effortless movement during deep cleaning, layout changes, and maintenance.

• Standard 10A plug-and-play installation — economical 310W power draw operates directly from standard Australian single-phase 240V mains power with a factory-fitted 10 Amp plug.

• Up to 4-year warranty protection — backed by an Australian 2-Year parts and labour commercial warranty, extendable with an additional 2-Year parts-only warranty upon product registration within 14 days of invoice.

Technical Specifications

Operating, Care & Preventative Maintenance

1. Pre-Chilled Beverage Storage: The Thermaster LG-540P is engineered to maintain pre-chilled beverages and perishables between 2°C and 8°C. While the fan-forced refrigeration system recovers quickly after door openings, always load the cabinet with pre-chilled beverages to prevent internal temperature spikes and reduce compressor runtime.(Note: This unit operates within a positive 2°C to 8°C temperature range and is not designed for frozen foods or ice storage).

2. Condenser Coil Cleaning (Every 2 to 4 Weeks): Dust, lint, and grease accumulation on the condenser coil restricts airflow, forcing the compressor to work harder and increasing power usage. Regularly vacuum or brush down the lower condenser fins using a soft brush attachment.

3. Internal Airflow Circulation: Avoid pushing cans, cartons, or bottles flush against the rear internal ducting or overfilling the wire shelves. Maintaining uniform space around your stock ensures unobstructed convection airflow and consistent temperatures across every shelf.

4. Door Gasket Sanitisation: Wipe down the magnetic door gasket weekly with warm soapy water to remove sticky soft-drink or syrup spills. Keeping the rubber seal clean and pliable maintains a tight perimeter seal, preventing cold air leaks.

5. Exterior Cabinet Care: Clean the white powder-coated Colorbond casing and glass door with a soft microfibre cloth and a mild commercial detergent or glass cleaner. Avoid abrasive scouring pads, caustic window cleaners, or harsh chemical solvents that can damage the coated finish.

Electrical & Ventilation Installation Guidelines

The Thermaster LG-540P is designed for straightforward plug-and-play installation without specialised wiring:

1. Electrical Supply: Operates on standard Australian single-phase 240V power with an energy-efficient 310W power draw. Supplied complete with a factory-fitted 10 Amp plug and lead, allowing direct connection to any conventional commercial or domestic wall outlet.

2. Ventilation Clearances: Like all commercial self-contained refrigeration units, the compressor expels heat during operation. Maintain a minimum clearance of at least 100 mm at the rear and 50 mm on both sides to allow warm exhaust air to dissipate freely.

3. Indoor Positioning: Place the unit away from direct sunlight, large glass shopfronts, cooking equipment (such as fryers and charbroilers), and ducted heating vents. Ambient temperatures exceeding 38°C will degrade cooling performance and increase power consumption.

4. Levelling & Mobility: Lock the front castor brakes once the fridge is in its permanent position to prevent movement when customers or staff open the door.

Freight & Delivery Notice

Standard commercial freight delivery is available across Australia to commercial business addresses with level ground access or loading docks. Due to the unit's height (2079 mm), 83 kg weight, and full glass door construction requiring upright transit, delivery to residential or non-commercial addresses requires a customised tail-lift freight quote. Please contact our friendly commercial sales team prior to ordering to verify site access, delivery doorway clearances, and receiving logistics.

Frequently Asked Questions

What does the GEMS 9-Star energy rating mean for my operating costs?

Australia's Greenhouse and Energy Minimum Standards (GEMS) evaluates commercial display refrigerators on energy consumption relative to their internal volume. A 9-Star rating is among the highest energy-efficiency ratings achievable in this category. Consuming just 2.59 kWh per 24 hours, the LG-540P operates at a fraction of the daily running cost of older commercial display fridges, delivering noticeable savings on annual utility bills.

Can the illuminated canopy be turned off independently?

Yes. The illuminated top lightbox canopy features a dedicated on/off switch. This allows venue operators to turn off the promotional header lighting after business hours while leaving the main refrigeration system running continuously to keep beverages cold overnight.

Does this fridge require external plumbing or a drainage outlet?

No. The LG-540P features an automatic off-cycle defrost cycle with a built-in condensate evaporation system. Melted frost from the evaporator coil is channelled down into a heated evaporation tray located above the compressor, where system heat naturally evaporates the moisture. No floor wastes, tundishes, or drain plumbing are required.

Is the glass door lockable for after-hours security?

Yes. The self-closing double-glazed glass door includes an integrated cylinder lock at the bottom of the frame and comes supplied with keys, allowing you to secure valuable stock during closed trading hours.

How do I activate the 4-year warranty coverage?

The Thermaster LG-540P comes standard with a 2-Year commercial parts and labour warranty. Venue owners who register their purchase online with the manufacturer within 14 days of the original invoice date receive an additional 2-Year parts-only warranty extension, providing up to 4 years of total warranty protection across Australia.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
