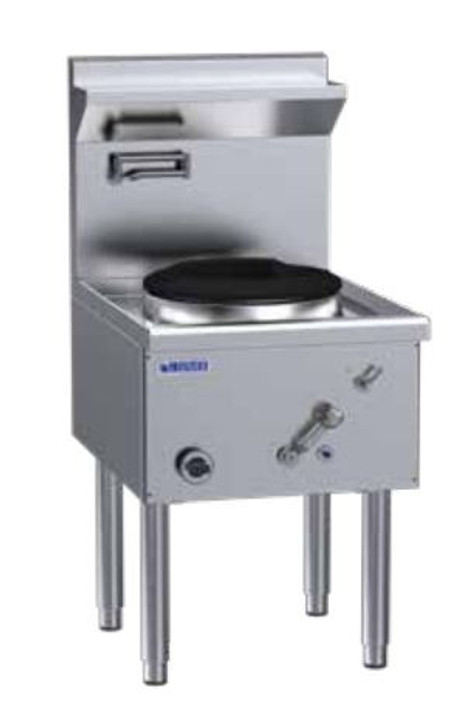

LUUS WZ-1C Compact Waterless Wok - 1 Chimney

Single hole wok with Chimney burner as standard. Compact 800mm depth, air cooling, pressed ring, front gutter and quarter turn tap folding laundry arm operation.

Features:

• Space saving 800mm total unit depth

• 333mm wok ring suitable for standard sized woks

• Chimney burners ideal for high heat/fast stir frying

• Uses up to 90% less water than Traditional Woks

• Air gap design eliminates need for water cooling

• Machine pressed deck to prevent grime catchment

• Concealed ring lip prevents water from entering air gap

• Removable, vented rear condiment shelf

• Modular design to suit multiple WZ wok units

• Optional Duckbill and Dual Ring Burners no additional cost

• 24 month ‘Platinum Warranty’

• Easy to clean and service

Waterless Wok

• 110 mj 24 jet chimney burners with pilot & FFD

• 333mm diameter standard size cast-iron wok ring

• Air gap cooling system

• Quarter turn water control lever

• Folding rear laundry arm with front panel controls

• Wider front gutter design for easier cleaning

• Internal front heat shield panel •

Supplied with waste strainer

• Zinc-aluminium Alloy burner handles

Overall Construction

• Heavy duty construction

• Full skirt, enamelled cast-iron rings

• 1.5mm 304 stainless steel one-piece pressed deck

• 0.9mm 304 stainless steel condiment shelf

• Splashback and front cover 1.2 mm 304 stainless steel

• Integrated hob 1.5mm 304 stainless steel

• Side panels 1.2mm 304 stainless steel

• Undertrays 0.9mm stainless steel

• Stainless steel removable legs

• 30mm height adjustment range

Dimensions

• 600mm x 800mm x 1300mm H

• Working height 800mm

• Weight 85kg

• Packed dimensions 650mm x 900mm x 1470mm H

• Packed weight 110kg

Connections

• Gas 3/4” BSP female

• Gas 121mm from right, 84mm from rear, 425m to floor

• Supplied with gas regulator (specify Nat or LP on order)

• Water inlet 1/2” copper tube

• Water 61mm from right, 81mm to rear, 408mm to floor

• Drain 1 3/4” BSP male, drain outlet 2”

• Drain 122mm from left, 83mm from rear, 590mm to floor

Cleaning & Servicing

• Easy access to all parts & components from front

Nat Gas: 110 mj

LP Gas: 110 mj

**Please advise if you would prefer Natural Gas or LPG when ordering.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
