LUUS CS-9C - 900mm Chargrill

LUUS CS-9C - 900mm Chargrill

This professional series chargrill has been impressively redesigned with 33mj/h E-burners, which deliver enhanced efficiency, faster heat recovery, and consistent heat distribution across the entire cooking surface.  Airflow and shielding have also both been significantly improved, ensuring components are better protected, prolonging unit longevity and performance in the longer term.

Features:

• S/S burners with cast iron radiant hood

• Optional ceramic rock configuration

• 33mj output per 300mm module

• Heavy-duty cast-iron J-grate (147mmx540mm) that can be rotated for inclined and level surface cooking

• Available freestanding or as a benchtop model

• 24 month ‘Platinum Warranty’

• Easy to clean and service

* Suitable for gas types Natural, LPG and ULPG (Specify when ordering)

Performance:

Stainless Steel E-burners heat up the cooking surface rapidly, but more importantly, achieves the heat recovery required for continuous service in the busiest of restaurants. You can opt for ceramic rocks at no extra cost, enhancing the flavour of your food with added smokiness.

Chargrill/ Barbecue:

• 33 mj S/S tube burners with pilot, FFD and piezo ignition

• Variable flame control valve with low flame setting

• Cast-iron heat distributing hood as standard

• Optional ceramic rocks for even heat and smokiness

• Optional cast iron ceramic rock tray

• Heavy-duty cast-iron J-grate (147mmx540mm) that can be rotated for inclined and level surface cooking

• CS-9C: 880mm x 505mm; 0.46m2 cooking area

• 2mm 304 stainless steel splash guards

Chargrill undertray 0.9mm stainless steel

Overall Construction:

• Heavy duty construction

• Welded 1.2mm 304 stainless steel front hob

• Front and side panels 0.9mm 304 stainless steel

• Splashback 1.2 mm 304 stainless steel

• Stainless steel legs with 55mm height adjustment range

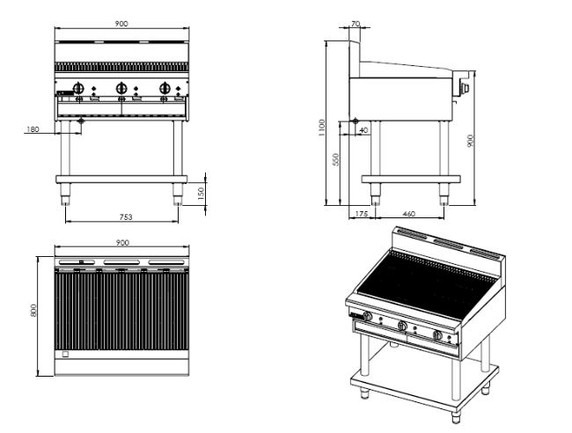

Dimensions:

• 900mm x 800mm x 1100mm H

• 900mm x 800mm x 597mm H (benchtop)

• Working height 900mm

• Weight 140kg

• Packed dimensions 900mm x 800mm x 1100mm H

• Packed weight 165kg

Connections:

• Gas 3/4” BSP male

• 180mm from right, 40mm from rear, 550mm from floor

• Benchtop model gas connection: 50mm from bottom

• Supplied with gas regulator (specify Nat or LP on order)

* Also available in Universal LPG (ULPG)

Cleaning & Servicing:

• Easy access to all parts & components from front.

The grates, shields, burners and trays can be easily removed for cleaning.  Large drip trays capture food and grease effectively, which is further aided by sloped J-shaped grates which encourage fat run-off towards the front trough.

While reliability has been enhanced, emphasis has been placed on improving unit serviceability.  All components are more easily accessible to service technicians, reducing the time required for servicing, minimising maintenance costs and downtime.

Options/ Accessories:

• Rear castors

• Joining caps

• Scallop low-contact grates

• J-shaped reversible grates

• RH and LH side shields

• Ceramic rocks (specify when ordering)

• Benchtop mount (specify when ordering)

Nat Gas: 99 mj

LP Gas: 99 mj

** Please advise your preferred gas type when ordering.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
