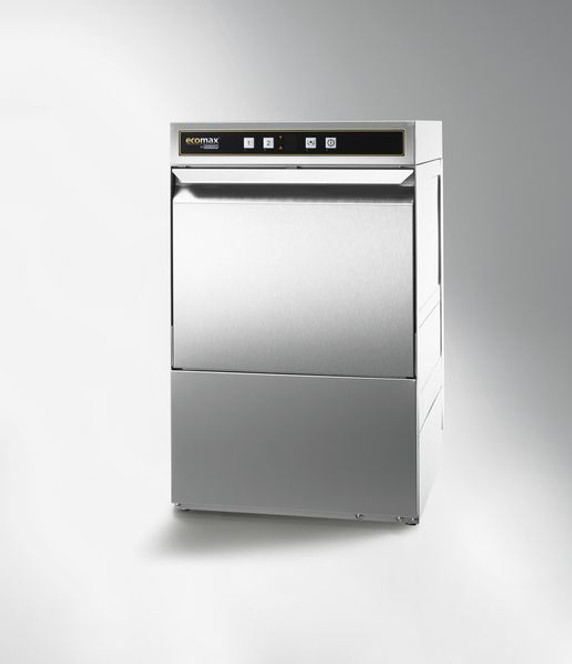

Hobart ECOMAX404-C Compact Glasswasher

A fast and reliable glasswasher in compact design made in Germany.  Perfect for start-ups, small bars or restaurants.

Features:

• Single-button control with digital temperature indication
• Flat surface of control panel
• 3 selectable wash cycles
• Special hygiene programme for hygienic cleanliness (drain pump necessary)
• Rotating top and bottom wash system to distribute the wash water evenly over the dishes
• Indented nozzles prevent blocking
• Thermostop-function for guaranteed temperatures
• Removal of rinse arms without any tools
• USB connection for easier service access
• Easy access to all parts
• Deep drawn rack track
• Double-walled housing and front door
• Integrated cycle counting, e.g. for control of water treatment system
• Refill signal monitors fill level of external chemical containers with optional suction lances

Standard Equipment:

• Glass rack with 4 sloped rows 139321-57
• Heater with thermostat control
• Electric cable, flexible water supply hose and drain hose
• Rear panelling

The installation of machines with integrated water softener requires a back-flow safety
device (at site) according to DVGW-DIN 1988.
Required supply pressure: with integral rinse pressure pump: 0.8 to 6 bar; without integral rinse pressure pump: 2 to 6 bar

Notes:

• Not suitable for use with Reverse Osmosis Systems
• Site Water Supply Pressure 3 - 6 bar.

Technical Data:

Cycle Times*: 60/120/180 seconds

Capacity per hour*: up to 60 racks /h

Water consumption: 1.8 l/rack

Wash pump: 0.18 kW

Tank heating: 1.8 kW

Tank Capacity: 10 Litres

Booster loading - standard: 1.8 kW (230V)

Total connected load - standard: 2.1 kW (230V)

Rated voltage: 230 / 50 / 1 (400/50/3N)

External dimensions: 436mm W x 534 D x 700 H

Loading height: 308 mm

Rack Size: 390 x 390 mm

* The machine is equipped with an automatic cycle-time control which ensures hygienic rinse temperatures even on a cold-water supply or with reduced heating performance.

Warranty: 12 Months

Please note: For machine protection the water hardness should not exceed 3°dH, if higher we recommend using a HOBART HYDROLINE water softener / treatment system.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
