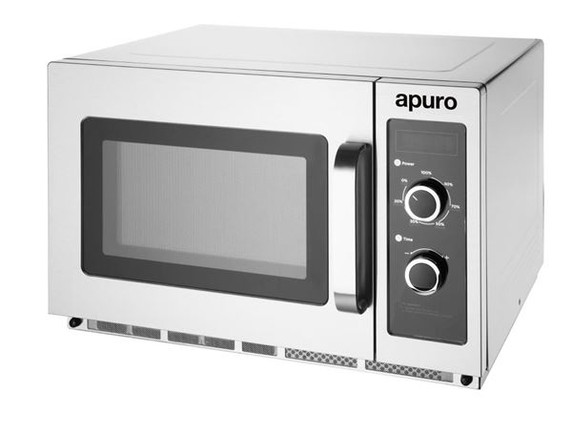

Apuro FB863-A Commercial Microwave 34L 1800W | Heavy Duty 15A Manual

The Apuro FB863-A Heavy-Duty Manual Commercial Microwave Oven (34 Litre Capacity, 1800W) is a high-performance, high-output cooking, reheating, and defrosting powerhouse engineered specifically for Australian pubs, club bistros, hotel pass lines, fast-casual restaurants, busy cafes, aged-care facilities, and school canteens. Measuring 368 mm High x 528 mm Wide x 574 mm Deep and weighing a robust 32.3 kg, this commercial-grade microwave features an expansive 34-litre flatbed cavity large enough to accommodate a full 406 mm (16-inch) dinner platter or non-metallic Gastronorm food pans. Delivering 1800W of microwave cooking energy driven by dual motor-driven rotating antennas, the FB863-A guarantees uniform heat distribution throughout the entire cavity—eliminating cold spots without needing a fragile spinning glass turntable. Constructed from heavy-gauge food-grade commercial stainless steel with tactile manual rotary dial controls, 5 versatile power stages, a 6-minute mechanical timer, an intelligent X2 double-portion modifier, and a removable internal splatter shield, this unit operates on an Australian 240V single-phase circuit fitted with a heavy-duty 15 Amp commercial plug.

Why Australian commercial hospitality venues, caterers, and busy kitchens choose the Apuro FB863-A:

• High-power 1800W commercial output — delivers rapid thermal recovery, ultra-fast reheating, and quick defrosting cycles, cutting wait times and eliminating service pass bottlenecks during peak meal rushes.

• Dual motor-driven rotating antenna system — twin bottom and top rotating antennas sweep microwaves evenly through the entire 34L chamber, ensuring consistent core temperatures across dense meals, sauces, and proteins without hot spots.

• Expansive 34-litre flatbed capacity — spacious ceramic base easily fits oversized 406 mm (16-inch) serving platters, large dinner bowls, or non-metallic fractional Gastronorm containers, maximising throughput per cycle.

• Flatbed ceramic base (no turntable) — flat ceramic floor eliminates fragile glass turntables and roller rings, allowing smooth sliding of heavy food dishes and enabling rapid end-of-service wipe-downs.

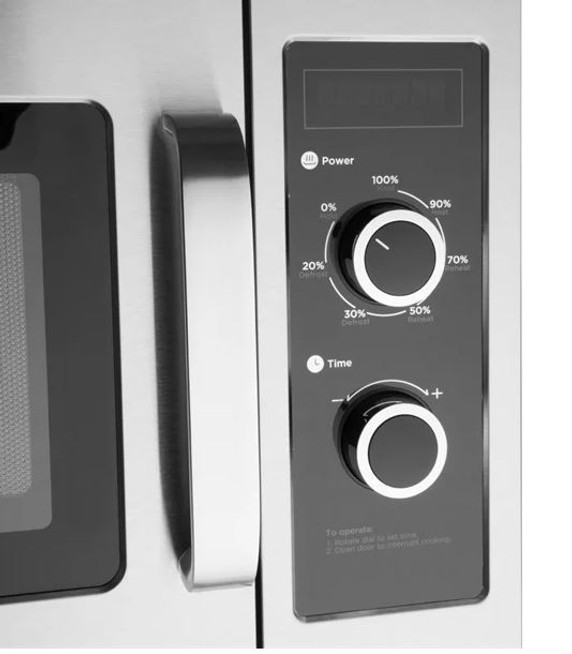

• Tactile manual dial timer (up to 6 minutes) — intuitive mechanical dial control offers quick, fuss-free operation for kitchen hands and line chefs, eliminating complex programming while speeding up high-tempo line prep.

• 5 variable microwave power levels — five selectable power settings provide precise thermal modulation, from delicate thawing of seafood and pastry dough to rapid flash-heating of plated mains and soups.

• Handy X2 double-portion function — automatically calculates and adjusts heating durations when microwaving two plates simultaneously, maintaining consistent dish temperatures during peak service rushes.

• Heavy-duty commercial stainless steel construction — internal cavity, external casing, and door surround are manufactured from commercial-grade stainless steel to resist kitchen grease, impact wear, and continuous high-volume operation.

• Removable ceiling splatter shield — protective stainless steel roof shield catches grease and sauce splatters, unclipping effortlessly for rapid sanitisation in commercial dishwashers to prevent magnetron contamination.

• Strong ergonomic easy-grip door handle — solid pull-latch handle is engineered without brittle push-buttons, withstanding thousands of high-velocity door openings throughout daily service shifts.

• Adjustable buzzer volume & non-slip rubber feet — allows kitchen managers to set audible alert volumes to overcome noisy extraction hoods, while heavy-duty non-slip feet keep the 32.3 kg unit securely anchored on stainless steel workbenches.

• 2-Year commercial warranty protection — backed by an Australian 2-Year parts and labour commercial warranty with dedicated national trade service support.

Technical Specifications

Daily Care, Maintenance & End-of-Shift Sanitisation

To preserve magnetron efficiency, prevent arcing, and maintain high commercial hygiene standards:

1. Removable Splatter Shield Cleaning: At the close of each shift, unclip the internal ceiling splatter shield. Wash it in a commercial pass-through dishwasher or pot-wash sink with warm water and a neutral commercial degreaser to remove baked-on oils. Always reinstall the shield once clean and dry before operating the microwave.

2. Ceramic Flatbed Base Maintenance: Wipe down the sealed ceramic floor daily with a soft microfibre cloth dampened with warm water and a mild food-safe sanitiser. Never use abrasive metal scourers, scrapers, or harsh caustic oven cleaners, as micro-scratches on the ceramic plate can cause thermal stress fractures and spark arcing.

3. Internal Cavity Sanitisation: Wipe down the stainless steel cavity walls and door glass using warm soapy water. For stubborn dried-on food splatters, place a microwave-safe bowl containing water and fresh lemon slices inside the unit, heat on high for 2 minutes to create steam, and wipe the softened residue away with a clean cloth.

4. Door Seal & Contact Surface Care: Keep the door perimeter, hinges, and safety latch contacts free of grease and food debris. Residual carbon on the door seals can lead to microwave energy leakage and prevent the interlock switches from engaging.

5. Air Filter & Ventilation Maintenance: Periodically inspect the air intake vents located at the base or rear of the unit. Clear any accumulated dust, grease mist, or flour using a dry soft brush or vacuum attachment to maintain continuous airflow across the magnetron cooling fans and prevent thermal cut-outs.

6. No-Metal Operating Rule: Never operate the microwave empty or with metallic cutlery, aluminium foil, or metal-rimmed chinaware inside the cavity. Metal reflection causes immediate electrical arcing, which permanently damages the wave guides and voids the commercial warranty.

Commercial Placement & Electrical Guidelines

The Apuro FB863-A is a high-power commercial appliance requiring appropriate kitchen electrical infrastructure:

1. Dedicated 15 Amp Electrical Outlet Required: This appliance is rated at 1800W output and draws commercial amperage. It is fitted with a factory-standard Australian 15 Amp plug (featuring an enlarged earth pin). It must be connected directly to a dedicated 15A commercial power outlet and cannot be plugged into a standard domestic 10A wall socket.

2. Countertop Positioning & Clearances: Place the microwave on a flat, level, heat-resistant commercial stainless steel workbench or pass shelf capable of safely supporting the 32.3 kg net weight plus heavy loaded food platters. Ensure the non-slip rubber feet are seated squarely.

3. Ventilation Clearances: Allow a minimum clearance of at least 100 mm at the rear and sides, and 200 mm above the top of the unit. Unrestricted airflow is vital for the internal cooling fans to dissipate heat from the heavy-duty transformers and dual magnetrons during continuous high-turnover service.

4. Separation from Heat Sources: Avoid installing the microwave directly above deep fryers, open griddles, or adjacent to commercial combi ovens, as hot grease-laden steam will be pulled into the internal cooling circuits, reducing component life.

Freight, Packaging & Delivery Notice

Standard commercial road freight delivery is available Australia-wide to commercial business addresses with level ground access or loading dock facilities. Due to the unit's 32.3 kg net weight, heavy internal transformers, and commercial packaging, deliveries to residential or non-commercial addresses require a customised delivery quote. Please contact our friendly commercial sales team prior to placing your order to confirm site access details, verify your venue's 15 Amp electrical availability, or consolidate freight with other commercial catering equipment orders.

Frequently Asked Questions

Why does this commercial microwave require a 15 Amp plug instead of a standard 10 Amp plug?

Because the Apuro FB863-A delivers a commercial-grade 1800W of microwave output power, its total electrical power draw exceeds the safe continuous threshold of a standard domestic 10A socket. The heavy-duty 15 Amp plug (recognisable by its wider bottom earth pin) provides the electrical capacity required to drive the dual commercial magnetrons and cooling fans continuously under intense kitchen workloads without tripping safety circuit breakers.

What are the operational advantages of a flatbed cavity over a rotating glass turntable?

Domestic and light-duty microwaves rely on rotating glass turntables that are prone to cracking when knocked by heavy ceramic platters, have moving wheels that trap food grease, and limit usable capacity to the diameter of the dish. The Apuro FB863-A features a sealed ceramic flatbed base with dual rotating antennas hidden underneath and overhead. This allows operators to slide full-sized 406 mm rectangular platters and non-metallic Gastronorm pans straight in, eliminates moving parts that break, and allows for fast, one-wipe cleaning.

How does the motor-driven double rotating antenna system work?

Rather than rotating the food on a turntable, the FB863-A uses dual motor-driven antennas that rotate within the base and ceiling of the cavity. These antennas disperse microwave energy uniformly throughout the entire 34-litre chamber from multiple angles simultaneously. This eliminates hot and cold spots, ensuring foods like lasagna, curries, and pies are heated through to their core while preserving texture and moisture.

How does the X2 double-portion function work?

When a kitchen hand needs to heat two identical meals at the same time, the X2 button modifies the heating duration according to commercial thermal absorption principles (which require slightly less than double the time of a single portion). This automates service timing, prevents dishes from drying out or being served cold, and keeps the pass moving during busy breakfast, lunch, and dinner rushes.

What type of containers are suitable for use in the Apuro FB863-A?

The microwave is compatible with commercial microwave-safe polycarbonate, polypropylene, tempered glass, and commercial ceramic containers. Non-metallic Gastronorm pans (such as clear polycarbonate GN 1/2 or GN 1/3 containers) can be placed directly onto the flat ceramic base. Metal containers, foil containers, and metallic-trimmed ceramics must never be used.

N.B Images are for illustrative purposes only. Specifications are subject to change without notice.
